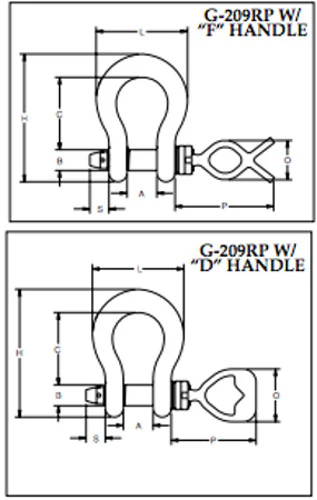

The Crosby G-209R ROV Shackle With D Or F Style Handle is the same as the G-209R ROV shackle but with a built-in handle to help remove and tighten the pin into the shackle.



• Capacities range from 8500kg up to 55,000kg
• The shackles are manufactured from forged steel that is quenched and tempered, with alloy pins
• Handles are made from stainless steel
• Shackles and bolts are available in both F and D designs
• Working load limit is shown clearly on every shackle
• Quick Check deformation and angle indicators are forged onto the bow of the shackle
• All ROV shackles are galvanised, then painted fluorescent yellow
• Handles are painted in a fluorescent orange

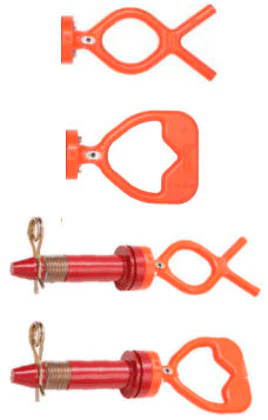

• D and F handle kits are available containing the handle, retaining bolts and individual packet of Locktite for easy installation
• Handles are RFID-equipped
• Look for the red pin... the mark of genuine Crosby quality
• Handles are available separately on request
